Products

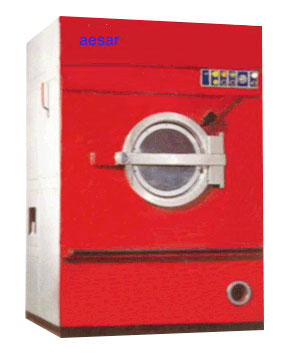

Dry Cleaning Machines - MODEL NO. AIDC - 81
M.T.O. Machines with powerful filter. With or without low spin extract. Machine available with soiled oil storage tank, fibre tank, filter pump, S.S liner basket, Largedia, S.S polishedide, presseddoor , Auto times, Auto reverse, Auto drain functions. ‘Dry cleaning machine’ is designed for removal of oily, greasy, tracing marks from the garments/quality/woollen garments. The dry cleaning is most suitable for the garments which have doubt of colour bleeding and where different type of fabrics used and giving problem of different shrinkages.
Aesar Dry Cleaning Machines
Model | Capacity Dry Wt. Per Charge |
Basket Size Volume |
Dry Clean Motor Speed |
Extract Motor |
Extract Speed |
Filter Pump Capacity |
Tank Capacity Base Filter |
Overall Dimensions W x D x H App |
Aproxy Wet |
PMC DT 15 | 15kg | 700x470 180Lts |
0.37 Kw 35RPM |
1.5kw | 200RPM | 0.37Kw 100Lts/Min |
260 Lts | 1000 x 1080 x 1730 | 475Kg |
PMC DT 25 | 25Kg | 960 x 500 362Lts |
RPM0.75Kw 35RPM |
3.75Kw | 200RPM | 0.37Kw 100Lts/Min |
260 Lts | 1300 x 1250 x 2000 | 900kg |

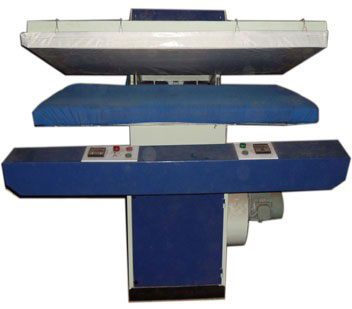

Industrial Flat Bed Press - Model No. AIBP - 12
Owing to our involvement in this domain since past several years, we have been specialized in manufacturing and supplying Flat Bed Press. Our products find great application in hotels and laundries owing to their suitability for removing moisture from hosiery clothes, table-lines, bed sheets and pillow covers. Flat Bed Press is characterized by automatic temperature control, pneumatic operated bed and padded buck to ensure its optimum operations. Clients can avail from us the aforesaid product at market leading price.
Features
- Power saving
- Longer service life
- Non-corrosive
- Simple to operate
Additional information
- Pneumatic operated bed with moisture and timer for bed releasing of head with pneumatic push button raising and lowering of the head
- Ideal for uniform, hosiery clothes, table-lines, bed sheets and pillow covers
- Press is fitted with a padded buck and polished iron head with moisture suction feature
- Auto timed, Auto temperature control, low energy consumption
- Covered with Teflon sheets in head
- Electric or steam heated type
Technical Specifications
No. | Head and bedsize | Air connection consumption |
Fluid connection consumption |
Steam connection consumption |
Electric load |
Dimensions (WxDxH) |
App. Weight |
75 | 1500x750 | 0.5 BSP 100 lts/min 6 kg/cm |
0.5, 0.5 BSP 16000 Kcal/Hr |
0.5 BSP 30 kg/hr |
18 Kw | 1600x1600x1300 | 600 kgs |
110 | 2300x1100 | 0.5 BSP 200 lts/min 6 kg/cm |
0.5, 0.5 BSP 32000 Kcal/Hr |
0.5 BSP 60 kg/hr |
36 Kw | 2450x1950x1300 | 800 kg |

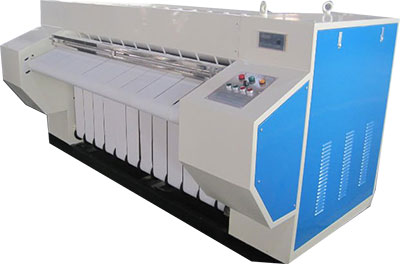

Flat Work - Model No. AIFW – 71rh & 71ch
- The Aesar flat work is used to dry and iron all flat articles such as bed sheet, pillow covers, table cloth ,napkins etc.. Directly after the extraction process to produce a quality finish.
- The feeding and heating belts are completely imported quality. These belts do not absorb moisture and prevent the transfer of any marks to the articles being processed.
- Heat is transferred to the articles being processed via a heated cylinder manufactured out of complete Boiler Grade (for steam heated machines). The unique design of the cylinder enables the transfer of heat with a high pressure on the articles there by creating a higher efficiency while canSumming minimal energy. Heating of the cylinder is via steam or electricity.
- Very low power and steam consumption and a compact front feed, front return design ensure very minimal space consumption.
- A powerful blower ensures maximum removed of the moist air created with the machine.
- The electrical panel is equipped with a digital temperature indicator and digital speed indicator. A hand safety guard through the length of the cylinder and emergency stop buttons are provided to ensure a safe working. A variable speed drive for different types of fabrics and reversing of the cylinder are standard.
- Safety finger bar across full width of ironer
- Safety and warning labels
- Padding and ribbons of temperature resistant
- Steam or Electrical Heating
- Variable speed drive with soft-start
- Electronic temperature control with digital read out
- Jog forward/ reverse
- Front or rear return
- Pneumatically controlled compression chest with automatic pressure adjustment
- High polished heated chest
- Electrical and mechanical protection devices
- Full exhaust canopy with external blower
- Electrical and mechanical protection devices
- Three phase electrical service
- Highly polished heated cylinder
- Life of interlocked end panels for easy maintenance
- Emergency stop buttons around the machine.
Aesar Flat Work Ironer Roller Heated
Model | Number of rolls |
Roller size mm inch |
Motor hp | Sunction motor hp |
Steam connection & consumption |
Inroning speed |
Ari Outlet (inches) |
Electric heating (kw) |
Dimensions (W X D X H) |
Net weight (kgs) |
FW-9 | 1 | 150 x 1200 6" X 48" |
0.5 | 0.5 | 15mm BSP 10kg H/R |
1-9 | 3 | 6 to 9 | 1900 x 750 x 1000 | 400 |
FW-10 | 1 | 250 x 1800 10" X 72" |
0.1 | 0.5 | 15mm BSP 10kg H/R |
1-9 | 3 | 10 to 14 | 2500 x 1010 x 1200 | 550 |
FW-18M | 1 | 450 x 1800 18" X 72" |
2 | 1 | 15mm BSP 20kg H/R |
1-12 | 4 | 16 to 20 | 2800 x 1100 x 1200 | 900 |
FW-20 | 1 | 500 x 2100 20" X 84 |
3 | 1 | 20mm BSP 30kg H/R |
3-12 | 5 | 22 to 28 | 3100 x 1100 x 1400 | 1100 |
FW-24 | 1 | 600 x 3000 24" X 120" |
3.5 | 1.5 | 20mm BSP 60kg H/R |
3-12 | 5 | 30 to 36 | 3300 x 1100 x 1400 | 1400 |
FW-24EX | 1 | 600 x 3000 24" X 120" |
5 | 2 | 38mm BSP 100kg H/R |
3-12 | 5 | N/A | 3300 x 1700 x 1400 | 2400 |
FW-36 | 1 | 850 x 3300 34" X 132" |
5 | 2 | 38mm BSP 130kg H/R |
3-13.5 | 6 | N/A | 4600 x 2100 x 1750 | 6200 |
FW-36EX | 2 | 850 x 3300 34" X 132" |
7.5 | 3 | 38mm BSP 24kg H/R |
3-13.5 | 6 | N/A | 4600 x 2900 x 1800 | 6900 |

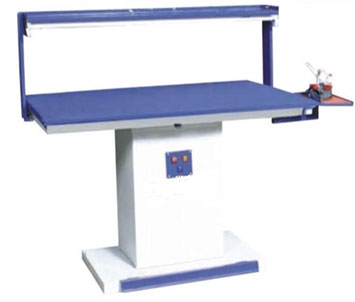

Vacuum Finishing Table - MODEL NO. AIVE -11
Table TOP padded with imported Silicon padding Strong welded construction. Thermostatically controlled stainless steel table heater. Extended exhaust duct with lighting device. Powerful function through centrifugal blower activated by spring loaded full length foot pedal working in conjunction with study micro switch. Silicon iron stand protects ironing and Teflon soles with stand up to 150˚c of temperature.
Covered with silicon foam with heat proof cloth.
Low maintenance.
Table exact moisture and heat instantly ensuring crease free and dry garments.
Available economical spares and services.
Aesar Vacuum Finishing Table
No. | Table Top Size |
Suction Motor | Suction Capacity | Overall Dimensions W x H x D |
Net Wt. |
1 | 1250 x 750 | 0.37Kw | 400 LTS/SEC (850 CFM) |
1530 x 890 x 1850 | 165Kg |
2 | 1500 x 900 | 0.75Kw | 600 LTS/SEC (1300 CFM) |
1780 x 1040 x 1850 | 190Kg |

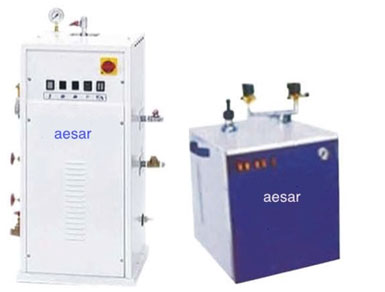

Steam Generator
Pressure Vessel - MODEL NO. AISG - 10
Boiler quality steel construction, S.S Heavy duty electric heaters imported water level. Regular, electric solenoid stem release safety valve.
Water Feed Pump
High pressure especially Designed peripheral pump automatically injects water into the pressure vessel.
Fully Automatic
Fully Automatic pressure control temperature control, water injection. Dry cut out device, Excessive steam pressure release.
Aesar Electric Steam Generator
No. | Heater | Ironing Capacity Table | Steam Pressure | Overall Dimensions | Approx. Weight | |
Electric | Steam | W x H x D | ||||
6 | 4/6 KW | 2 | 2 | 85 psi(6 Bar) | 600 x 450 x 900 | 90Kg |
12 | 12/16 KW | 6 | 4 | 85 psi(6 Bar) | 750 x 490 x 900 | 115Kg |
18 | 18/22 KW | 10 | 8 | 85 psi(6 Bar) | 1000 x 690 x 1125 | 170Kg |
45 | 45/60 KW | 20 | 16 | 105 psi(7 Bar) | 1200 x 750 x 1150 | 185Kg |
